Cutting Simulation

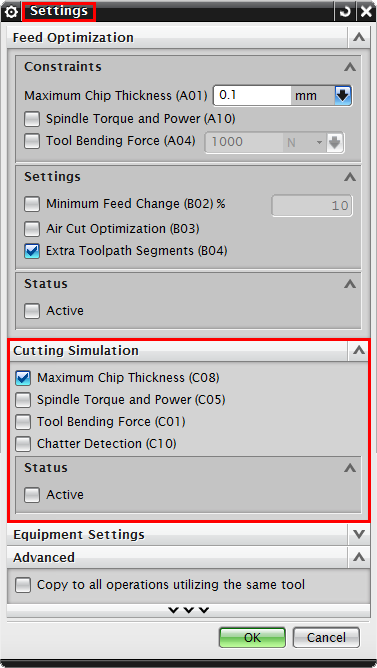

The Cutting Simulation dialogue is where the user enables/disables simulation of existing toolpath operations.

settings_cuttingsimulation - Copy

Ø	Maximum Chip Thickness (C08): Simulates the maximum chip thickness during machining

Ø	Spindle Torque & Power (C05): Simulates the variation in spindle torque and power during machining

Ø	Tool Bending Force (C01): Simulates the variation in tool bending forces during machining

Ø	Chatter Detection (C10): Detects chatter locations during machining *Requires tool flexibility data, refer to Equipment Settings*

Ø	Status: Activates/Deactivates Cutting Simulation.
